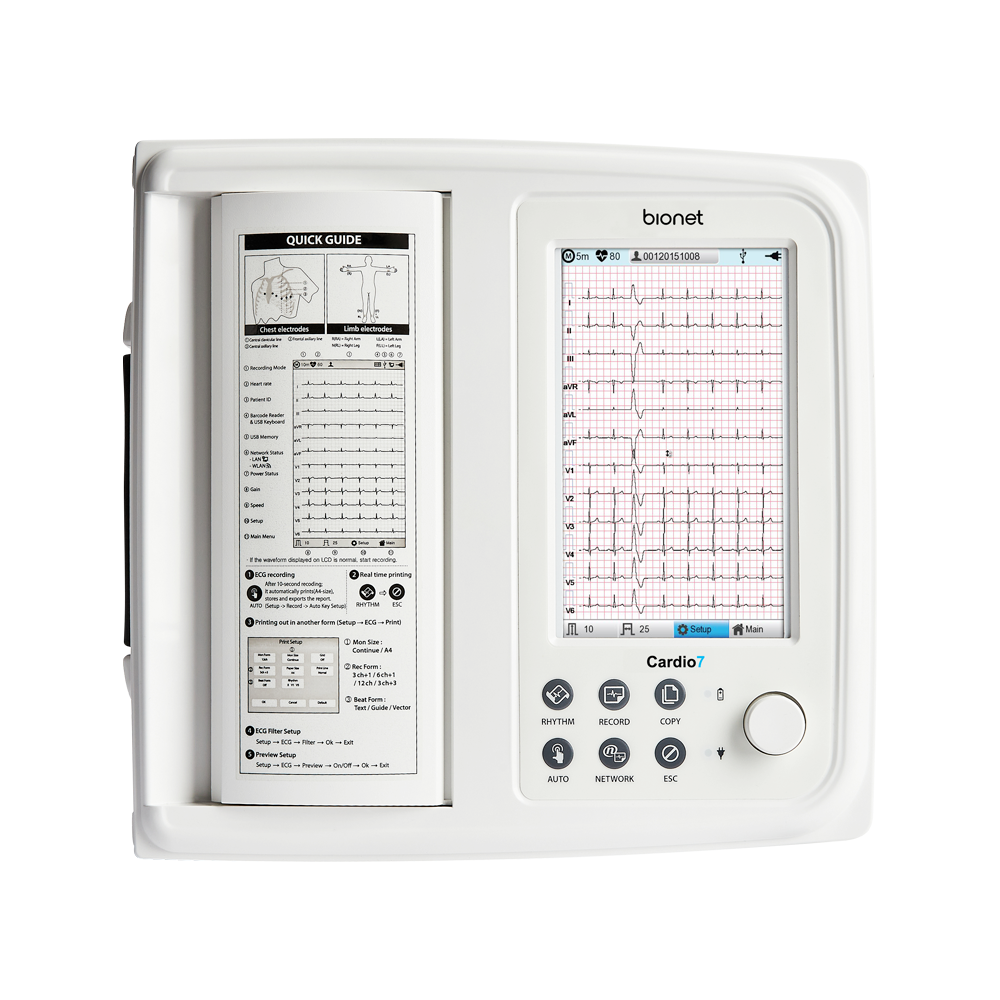

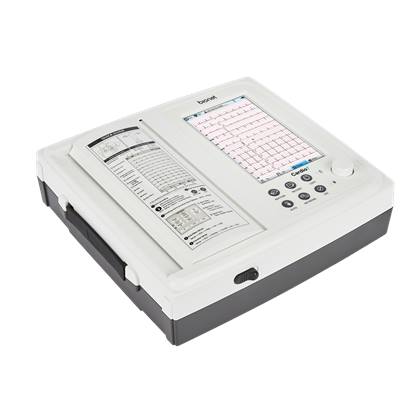

Cardio7

Cardio7

Captures , stores, analyzes, and transmits by simplifying workflow with user-friendly usability

Simplifying workflow with “AUTO” operation
  • One button “AUTO” operation from acquisition to print-out & data record in 3 sec.
Easy ECG file data conversion
  • Easy file conversion to PDF, XML, JPG, BMP, MFER, DICOM that transfers with easy user interface.



User-friendly interface & diagnosis

  • Full touch operation with easy of use 6 buttons for streamlining line workflow
  • Thermal A4 size print out
  • Text, Guide, Vector printout format for enhanced interpretation
  • Rechargeable Li-ion battery for 180 min. operation / 200 pages printout
  • Long term recording of 3,5,10 min. of various analysis algorithms

Network & Data management

  • Wired/Wireless network connectivity to HIS/EMR with easy DHCP interface
  • 200 Internal memory storage data
  • BMS PLUS connection for data management from PC through LAN & for data transfer to HIS (PACS/EMR) with various file format: JPEG, BMP, XML, PDF, MFER, DICOM
  • Full disclosure up to 5 min. for HRV, Arrhythmia analysis

Spirometry connection (optional)

  • Support various function tests: FVC, SVC, MVV
  • Various formula integration: Morris-Polgar, ECCG-Quanher, Knudson-ITS, Pereira, KOREA CJK
  • Unique infection-free, disposable mouthpiece solution
Product SpecificationsValue
ECG Leads Simultaneous 12 Leads Resting ECG
Recording Channel 3CH+1RHY, 3CH+3RHY, 6CH+1RHY, 12CH, 6CH+ST map
1CH Long Time(1min, 3min, 5min,10min) and
Special Beat Report (Text, Guide, Vector, ST map)
Gain 2.5, 5, 10, 20, Auto (I~aVF: 10, V1~V6: 5) mm/mV
Printing Speed 5, 12.5, 25, 50, 100 mm/sec
Sampling Rate Analysis Sampling Rate - 500
Digital Sampling Rate - 8,000
Filters AC (50/60 Hz, -20dB or better),
Muscle (25~35Hz, -3dB or better),
Base line drift (0.05Hz, 0.1Hz, 0.2Hz, -3dB or better),
Low pass filter(off, 40Hz, 100Hz, 150Hz)
Display 800 x 480 pixel resolution, 7” Color TFT wide display
12 channels preview, ID, HR, Gain, Speed, Power status
User Interface Touch screen, Rotary push-knob
Printer Resolution Thermal print head, Roll Paper
Report paper
• width : A4/Letter 215mm(8.5”)
• length : A4 297 mm (11.7”)
Letter 279mm(11”)
Resolution: 8dot/mm(0.125mm pitch)
Simplifying workflow with “AUTO” operation
  • One button “AUTO” operation from acquisition to print-out & data record in 3 sec.
Easy ECG file data conversion
  • Easy file conversion to PDF, XML, JPG, BMP, MFER, DICOM that transfers with easy user interface.
Enhanced sampling rate for data accuracy
  • With 8,000Hz per second sampling rate, it is designed to improve clinical decision for cardiology with accurate ECG interpretation algorithm and full storage of 200 ECG data per 5 minutes.
Advanced algorithm & analysis
  • With long term recordings of 3,5,10 min, it features various analysis algorithms of ECG diagnosis.
BMS Plus Patient data management in mind
  • All patient data is transferable to BMS Plus and PC based data management SW with real time remote operation.
BMS plus offers caregivers the workflow flexibility for
  • Data preview
  • Device remote control
  • File conversion to PDF, XML, JPG, BMP, MFER, DICOM for data transfer through PACS.
  • Direct print-out, magnifying and comparing ECG trace, measuring ECG complex, adding comments
Cardio7

About Product

  • Easy ECG file data conversion
  • Simplifying workflow with “AUTO” operation
  • User-friendly interface & diagnosis
Download brochure
Always supplied with the product

Included accessories

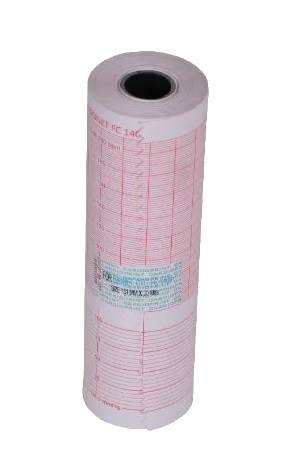

ECG Paper Roll

ECG Paper Roll
Limp electrodes

Limp electrodes
Chest Electrodes

Chest Electrodes
Optional with extra price

Optional accessories

ECG Cart

ECG Cart
